Addressable Fire Alarm Control Panels
Apollo Elite VF1480
The Elite VF1480 analog addressable FACP with networked releasing, supports 2 or 4 SLC loops for a total of 500 primary points and up to 800 points using subpoints. SLC loop communications uses standardtwisted pair cabling, shielded cable is not necessary.
Specifications | Details |
|---|---|
Aux Inputs | (3) digital pull downs |
Aux Power | 500mA @ 24VDC |
Voltage Output | (3) 500mA @ 24VDC, reverse polarity supervised |
Relay Outputs | (5) Form C 1 Amp @ 30VDC |
NAC Outputs | (4) 1.6 Amp @ 24VDC (class B) |
Devices perloop | 126 sensors & modules (800 addresses + sub-addresses max. per panel) |
SLC Loops | 2 or 4 (Class A or B) |
Zones | 500 Zones per network |
Display | 8 line x 40 character LCD (320 characters total) |
Charger Current | 1.25 Amps Max |
Power Supply | 5.25 Amp regulated and intergrated |
Output DC | 24VDC @ 4 Amps |
Primary AC | 120VAC @ 2 Amps 60hz (OPtional 240 VAC 50hz) |
.webp)

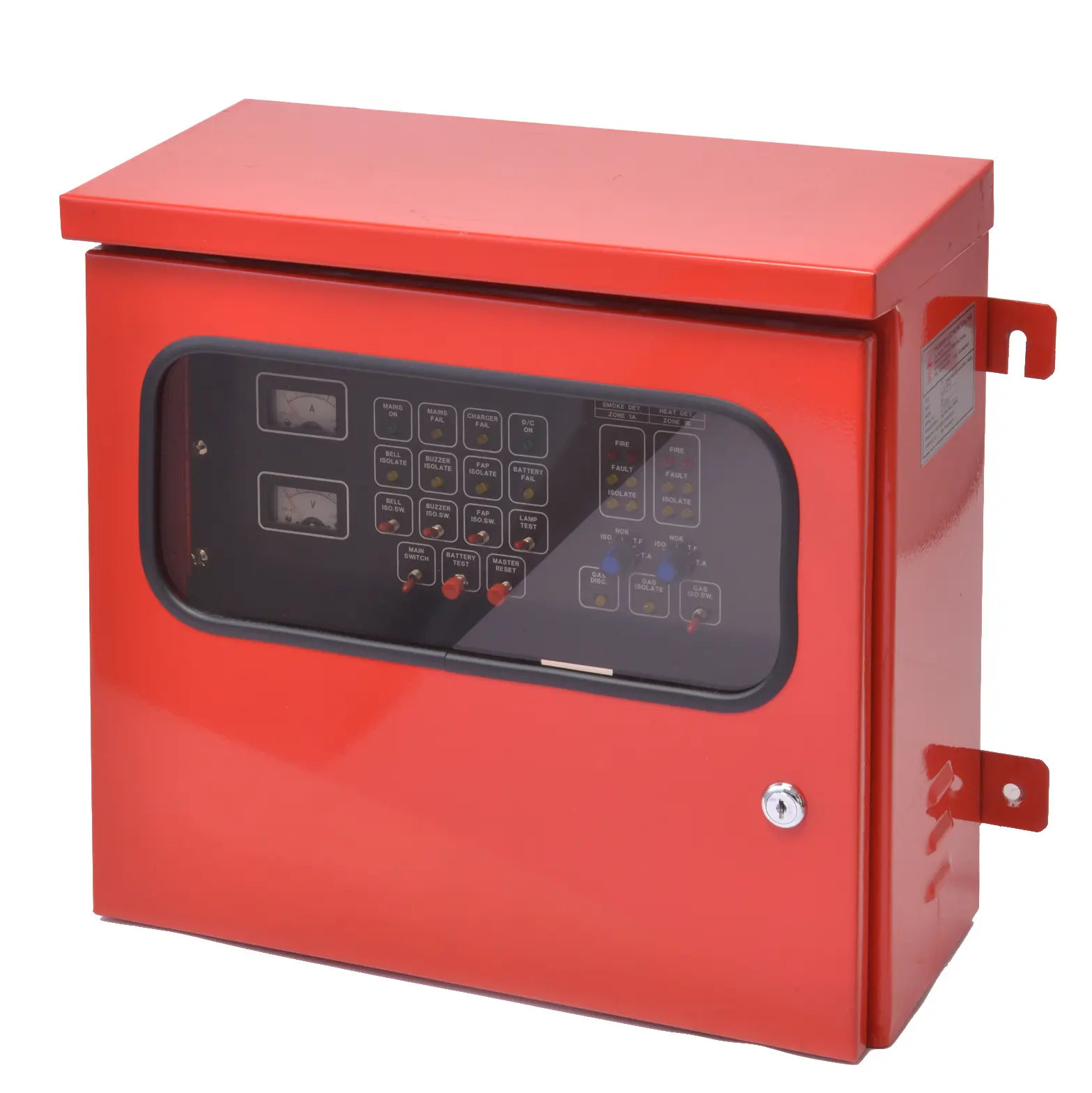

Kentec Sigma A-XT
KENTEC Sigma A-XT releasing panel offers outstanding value and performance for all small to medium fixed firefighting installations. With three initiation circuits as standard, release can be configured to activate from any combination of detection zone inputs to allow (among other combinations) any two from three types of activation.
Specification | Details |
|---|---|
Aux Inputs | (3) digital pull downs |
Primary AC | 120VAC @ 2 Amps 60hz (OPtional 240 VAC 50hz) |
Output DC | 24VDC @ 4 Amps |
Power Supply | 5.25 Amp regulated and intergrated |
Charger Current | 1.25 Amps Max |
Display | 8 line x 40 character LCD (320 characters total) |
Zones | 500 Zones per network |
SLC Loops | 2 or 4 (Class A or B) |
Devices perloop | 126 sensors & modules (800 addresses + sub-addresses max. per panel) |
NAC Outputs | (4) 1.6 Amp @ 24VDC (class B) |
Relay Outputs | (5) Form C 1 Amp @ 30VDC |
Voltage Output | (3) 500mA @ 24VDC, reverse polarity supervised |
Aux Power | 500mA @ 24VDC |
