Smoke Detectors

Aseanware

Explosion-Proof Conventional smoke Detector

The Elite VF1480 analog addressable FACP with networked releasing, supports 2 or 4 SLC loops for a total of 500 primary points and up to 800 points using subpoints. SLC loop communications uses standardtwisted pair cabling, shielded cable is not necessary.

Specifications	Details
Main Voltage	DC24V± 3V (no polarity)
Operating current	Monitor : 150µA Alarm : ≤30mA
Alarm Relay Output	Normally Open and Closed
Smoke Alarm Sensitivity	0.10dB/m~0.27 dB/m
Ex-Atex Protection Level	Gb/ExibDtDA21IP65T85
Materials and colors	CAST IRON， ABS, White
Mating Host	AW-CFP2166 fire alarm control panel
Outlet Interface	G20
Environmental	Temperature range: -10 to 50°C Humidity: 5 to 95% RH, non-condensing
Size	150mm* 150mm* 110mm
Weight	about 1.2kg
Bus quiescent current	≤400μ A
Bus quiescent current Outlet thread	2-G3/4
Alarm confirmation light	Red, flashing during inspection, always on when alarm
Atmospheric pressure	80kPa～110kPa

Apollo

Photoelectric Smoke Detector Series 65A Flashing LED

The Series 65A Photoelectric Smoke Detector uses the same outer case as the ionization smoke detector and is distinguished by the indicator LED which is clear in standby and red in alarm. Within the case is a printed circuit board which on one side has the light proof labyrinth chamber with integral gauze surrounding the optical measuring system and on the other the address capture, signal processing and communications electronics.

SPECIFICATION

Responds well to slow burning, smouldering fires
Well suited to bedrooms and escape routes
Unaffected by wind or atmospheric pressure
Wide operating voltage
High-sensitivity option
Flashing LED option
lashing LED, and magnetic test option


GST

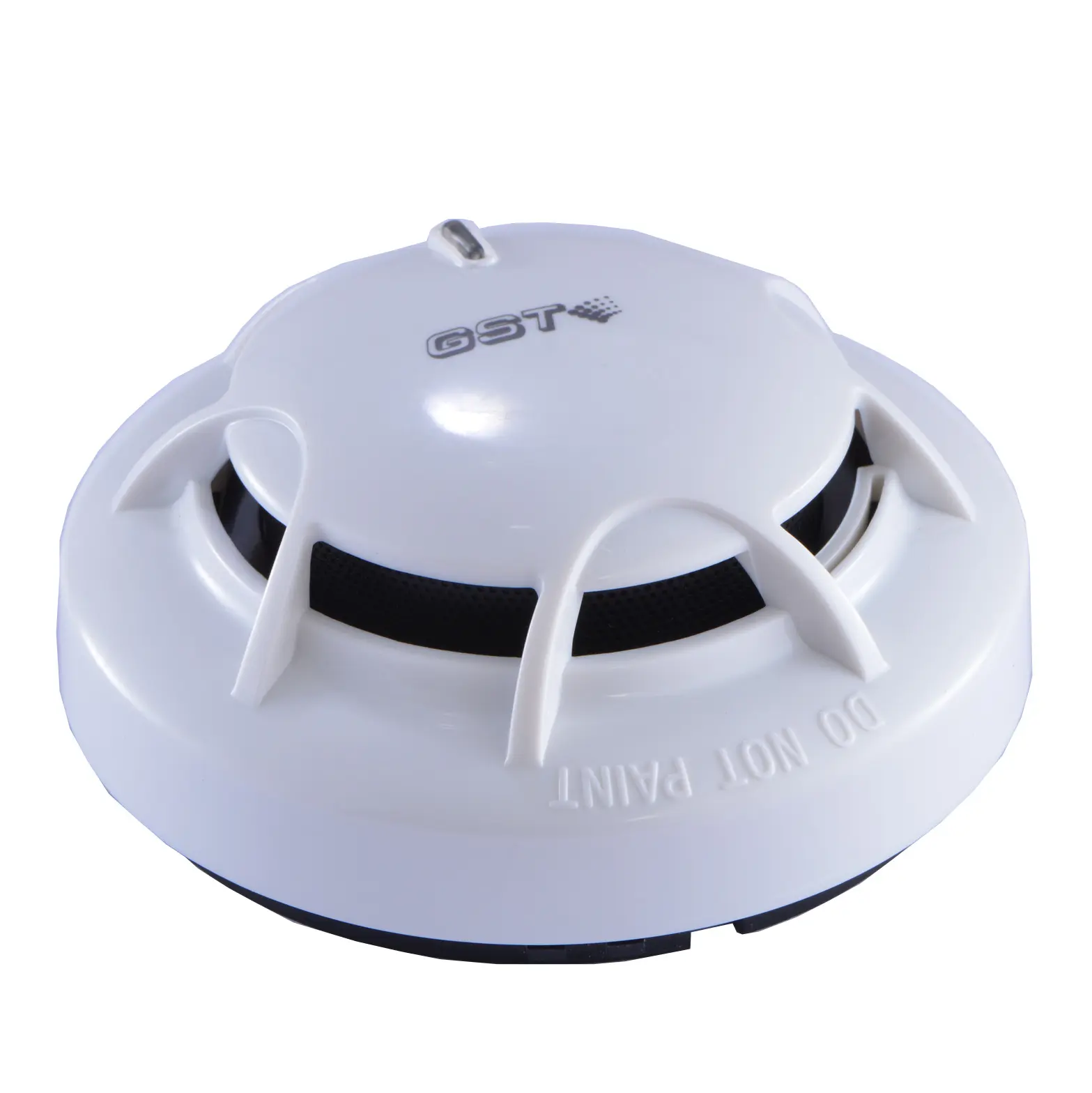

DI-9102E Intelligent Photoelectric Smoke Detector

DI-9102E intelligent detector adopt the latest digital loop protocol, compatible with GST intelligent fire alarm control panels. With digital communication, the detectors can raise fast alarm signal within 1 second, and much more control can be processed. The detectors can be installed onto the common detector base DB-01. A remote indicator C-9314P can be connected to each detector The optical detector is designed based on light scattering technology with high performance chamber, suitable for detecting slow burning or smoldering fires.

SPECIFICATION

Electrically addressed, can be modified by programmer
Strong environmental adaptability due to drift compensation
Self-diagnostic
Reed switch test
Fire LED allows 360° viewing
LED indication for normal status can be turned off by handheld programmer

SYSTEM

Sensor Smoke Detector 882

System Sensor’s 882 smoke detector is a 2-wire conventional profile plug-in detectors aimed to meet the performance criteria designated by UL. The design for these detectors emphasizes economical and highly reliable. A LED will latch on when the detector is in alarm to provide a local alarm signal. The (-) IN and (-) OUT terminals are short circuited inside the detectors. When the detector is mounted, it will continue the wire to the next device or EOL resistor. When it is removed, the wire will be open for wiring supervision.

SPECIFICATION

Diameter: 10.2 cm (4″)
Height(including base): 4.8 cm (1.8″) for Heat
5.0cm(2.0″) for Photoelectronic
Operating Temperature Range: 0~38°C (32°F to 100°F) for Heat 0~49°C (32°F to 120°F) for Photoelectronic
Operating Humidity Range: 10% to 93%Relative Humidity, Non-condensing
Max. Air Velocity: 20m/s (Heat only)
Latching Alarm: Reset by momentary power interruption
Sensitivity: 63°C (145.4°F) Fixed (Heat only)
Operating Voltage: 8.5~30 VDC for Heat 8.5~35 VDC for Photoelectronic
Standby Current: ≤50μA for Heat ≤90μA for Photoelectronic
Alarm Current: Min. : 2 mA for Heat; 10mA for Photoelectronic Max.: 80 mA for Heat; 130mA for Photoelectronic

SITERWELL

Smoke Alarm

SITERWELL smoke alarm is operated by 9V battery (6LR61 or 6F22), battery life 1 year minimum. With the photoelectric technology, it is more sensitive to detecting slow smolder fires which general thick, black smoke, little heat and may smolder for hours before bursting into flames. The smoke alarm do not contain the radioactive material which is harmless to environment. The smoke alarm should be installed in every room (except the bathroom), and every other area of the home, making sure the people in the home will be able to hear and respond to the alarm sound.

SPECIFICATION

DC 9V battery operated
Photoelectric chamber for early detection from all directions
Loud > 85dB (A) alarm signal @ 3M
Flash alarm indicator (red LED)
Test button for easy recommended monthly testing
Low battery signal
Safety clip feature, not allow mounting without battery installed
Ceiling mounting
Easy to install with mounting bracket
Model GS 506

Heat Detector and Sensor

apollo

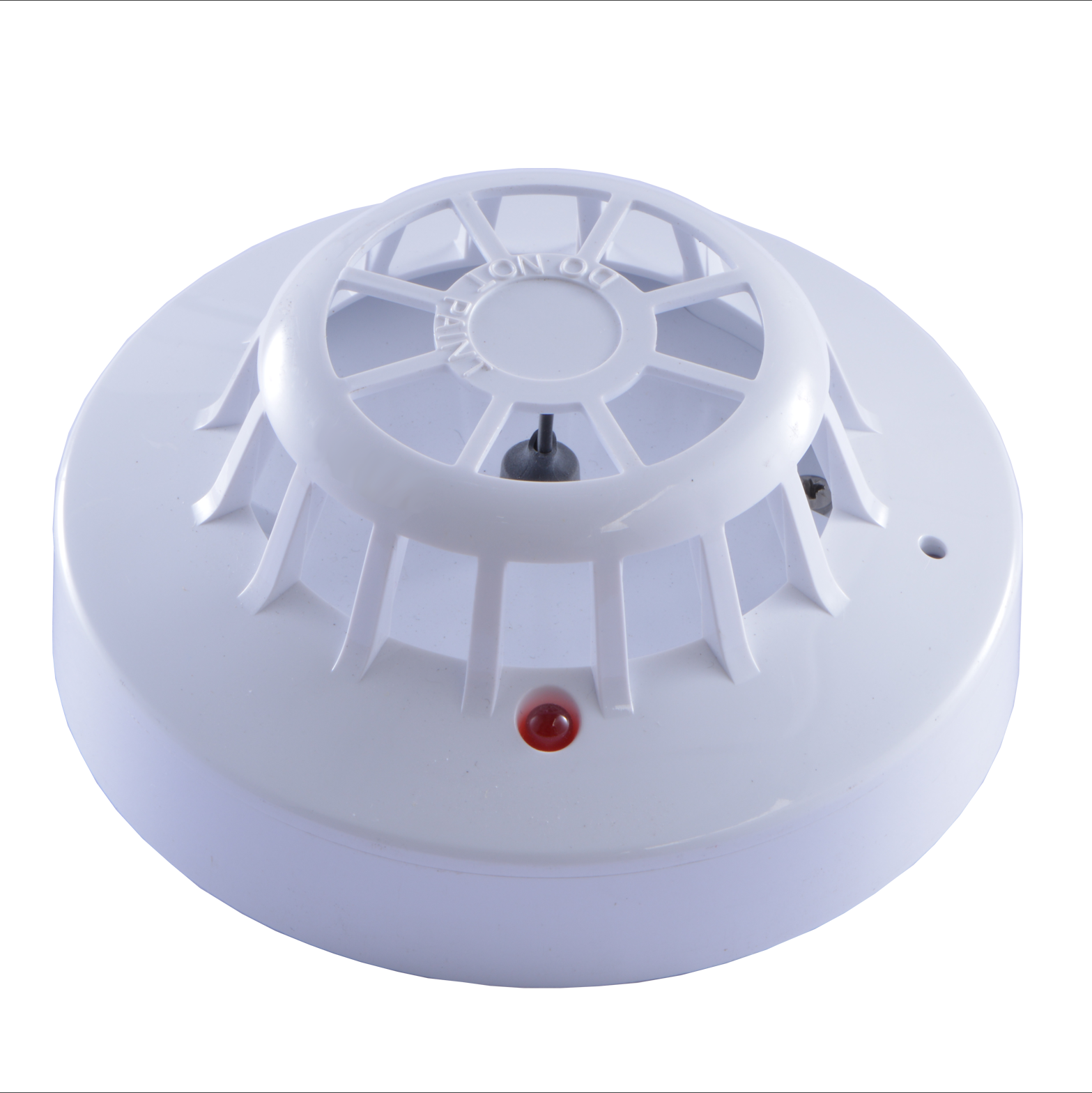

Series 65A 135F Heat Detector

The series 65A 135F Heat Detector monitors temperature by using a dual thermistor network providing a voltage output proportional to the external air temperature. The nine detectors in the Series 65A range are designed to suit a wide variety of operating conditions.

Specifications	Details
Supply Voltage	9 -33 V DC
Surge Current	0 mA
Alarm Current	17mA at 9 V, 52 mA at 24 V
Dimensions	100mm(Ø) x 42mm(H)
Net Weight	80g
Material Housing	White flame-retardant polycarbonate
Material Terminal	Nickel plated stainless steel

DEMCO

Heat Detectors D-103

DEMCO Heat Detectors D-103 employ the principle of electrother- modynamics, the science of relation between heat and electromechanical works. They are professionally designed to work reliably with most fire detection system with central control equipment.

These units feature a double stage fire detection by employing two distinct methods: Rate-of-Rise and Fixed Temperature, both of which are open circuits designs designed to close an electrical circuit upon activation. The DEMCO D-103 Heat Detectors meet the require- ment of UL521.

SPECIFICATION

Double sensitivity (Rate of Rise & Fixed Temperature)
Interchangeable base
Easy installation
Double terminal wire connector
LED indication
Low power consumption
Wide voltage variation
Auto Reset (Rate-of-Rise mode)
Durable

apollo

Series 65A 170F Heat Detector

The series 65A 170F Heat Detector monitors temperature by using a dual thermistor network providing a voltage output proportional to the external air temperature. The nine detectors in the Series 65A range are designed to suit a wide variety of operating conditions.

Specifications	Details
Supply Voltage	9 -33 V DC
Surge Current	0 mA
Alarm Current	17mA at 9 V, 52 mA at 24 V
Dimensions	100mm(Ø) x 42mm(H)
Net Weight	80g
Material Housing	White flame-retardant polycarbonate
Material Terminal	Nickel plated stainless steel

ASENWARE

Explosion-Proof Conventional Rate of Heat Detector

ASENWARE Explosion-Proof Conventional Rate of Heat Detector, AW-CTD382EX is suitable for hazardous locations which include the explosive gas environment. The AW-CTD382EX conventional rate of rise heat detector uses thermal components to detect the temperature in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value. This detector can be used with the conventional fire alarm panel

Specifications	Details
Main Voltage	DC24V± 3V (no polarity)
Operating current	Monitor: 60µA Alarm: ≤30mA
Alarm Relay Output	Normally Open and Closed
Fix Temperature Alarm	57℃ (135°F)
Rate of Rise Alarm	7.1℃/5S
Ex-Atex Protection Level	Gb/ExibDtDA21IP65T85
Materials and colors	CAST IRON， ABS, White
Mating Host	AW-CFP2166 fire alarm control panel
Outlet Interface	G20
Environmental	Temperature range: -10 to 50°C (14~131°F) Humidity: 5 to 95% RH, non-condensing
Size	150mm* 150mm* 110mm
Weight	about 1.2kg
Bus quiescent current	≤400μ A
Bus quiescent current Outlet thread	2-G3/4
Alarm confirmation light	red, flashing during inspection, always on when alarm
Atmospheric pressure	80kPa～110kPa

VIC-803

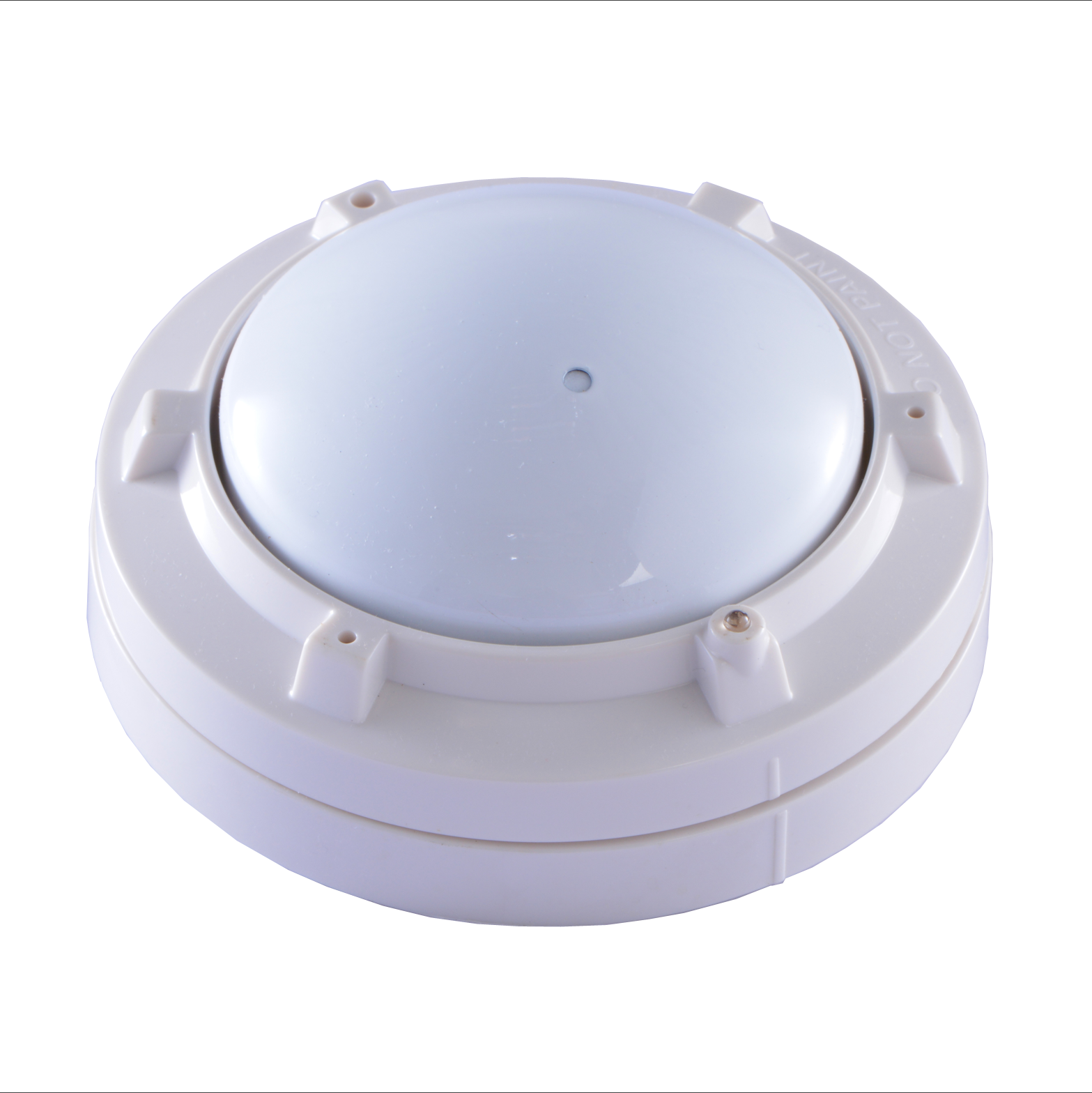

Mechanical Heat Detector

The VIC-803 Mechanical Heat Detector offered Rate-of-Rise or Combination Rate-of-Rise & Fixed Temperature features. This detector available in 135°F or 194°F & in compliant with UL-521 & EN54-5:2000.

Specifications	Details
Voltage/Contact Ratings	6 – 125VAC / 3A 125VDC / 0.3A , 6 – 28VDC / 1A 250VDC / 0.1A
Input Wire Gauge	14 – 22 AWG
Standby Current	Nil
Operating Current	< 2mA
Operating Humidity	5 to 95%RH non-condensending
Dimension	101mm(Ø) x 43mm(H)
Net Weight	118g
Color	White
